AS12003810-3271-101

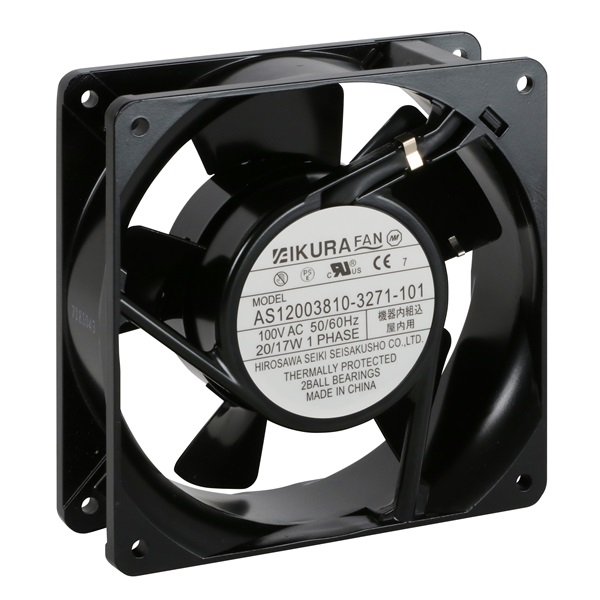

The product photo shows a representative model. Specifications and appearance may vary.
Model:AS12003810-3271-101
Series:AS120038
Standards
| Classification | Axial Fan |
|---|---|
| Environmental Measures | Standard Type |
| Dimensions | □120x38 |
| Frame Size | □120 |
| Frame Thickness | 38 |
| Phase | Single-Phase |
| Power Supply | AC |
| Rated Voltage [V] | 100 |
| Frequency [Hz] | 50/60 |
| Input power [W] | 20/17 |
|---|---|
| Current [A] | -/- |
| Rotation speed [min-1] | 2600/3100 |
| Maximum Airflow [ｍ3/min] | 2.8/3.3 |
| Maximum Airflow [CFM] | 98.87/116.6 |
| Maximum Static Pressure [Pa] | 88/100 |
| Maximum Static Pressure [inH2O] | 0.35/0.4 |
| Noise [dB(A)] | 46/50 |
| Mass [kg] | 0.61 |
| Service Life | - |
|---|
| Sensor | |
|---|---|
Fan sensorsetting not available. |
|
Safety Standards
| [UL] | [CE] | [c-ULus] | [TUV] | [PSE] |
|---|---|---|---|---|
| - | ◯ | ◯ | - | ◯ |
Specifications
| Motor Type | Single-Phase Shaded Pole Induction Motor |
|---|---|
| Material (Blade) | Metal |
| Material (Frame / Case) | Aluminum Die-Cast |
| Material (Base [for Non-Frame Models]) | - |
| Insulation Class | Class A 105℃(UL),Class E 120℃ |
| Bearing | Ball Bearing |
| Operating Temperature Range | -10~+60 |
| Operating Humidity Range | RH35~85%(non-condensing) |
| Storage Temperature Range | -40~+70 |
| Storage Humidity Range | RH20~85%(non-condensing) |
| IP Code | - |
|---|---|
| Operating Voltage Range | Voltage fluctuation: Within ±10% of rated voltage Continuous operation: At or below rated voltage |
| Protection Method | Thermal Protection |
| Noise characteristics | Measured at a distance of 1.0 m from the side of the product. |
| Airflow–Static Pressure Characteristics | Double Chamber Method (AMCA210) |
| Dielectric Strength | AC1500V for 1 minute or AC1800V for 1 second |
| Insulation Resistance | 100 MΩ or more when 500 V DC is applied between the windings and the frame under normal ambient conditions. |
| Lead Wire Specifications | - |
