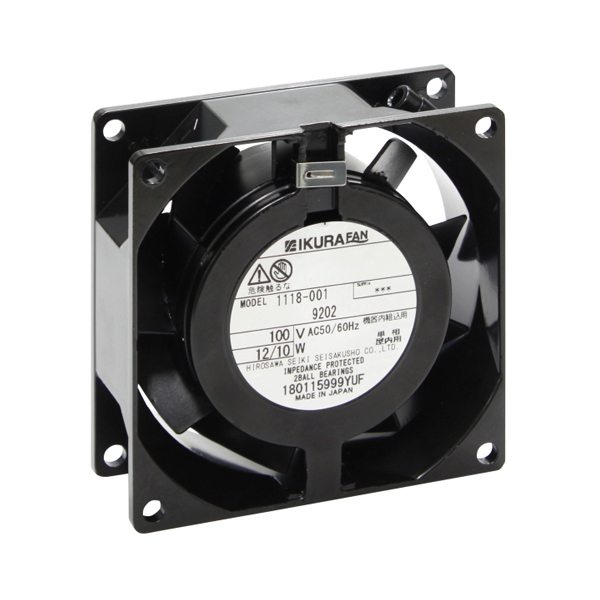

UR9202
The product photo shows a representative model. Specifications and appearance may vary.
Model:UR9202
Series:9202
Catalog PDF
Standards
| Classification | Axial Fan |
|---|---|
| Environmental Measures | Moisture-Proof Type |
| Dimensions | □80x28 |
| Frame Size | □80 |
| Frame Thickness | 28 |
| Phase | Single-Phase |
| Power Supply | AC |
| Rated Voltage [V] | 100 |
| Frequency [Hz] | 50/60 |
| Input power [W] | 12/10 |
|---|---|
| Current [A] | -/- |
| Rotation speed [min-1] | 2550/3100 |
| Maximum Airflow [ｍ3/min] | 0.64/0.76 |
| Maximum Airflow [CFM] | 22.6/26.84 |
| Maximum Static Pressure [Pa] | 33.32/46.06 |
| Maximum Static Pressure [inH2O] | 0.13/0.18 |
| Noise [dB(A)] | 37/40 |
| Mass [kg] | 0.38 |
| Service Life | - |
|---|
| Sensor | |
|---|---|
Please refer to the fan sensor documentation. |
|
Safety Standards
| [UL] | [CE] | [c-ULus] | [TUV] | [PSE] |
|---|---|---|---|---|
| ◯ | - | - | - | - |
Specifications
| Motor Type | Single-Phase Shaded Pole Induction Motor |
|---|---|
| Material (Blade) | Metal |
| Material (Frame / Case) | Aluminum Die-Cast |
| Material (Base [for Non-Frame Models]) | - |
| Insulation Class | Class A 105℃ |
| Bearing | Ball Bearing |
| Operating Temperature Range | -40~+50 |
| Operating Humidity Range | RH35~95%(non-condensing) |
| Storage Temperature Range | -40~+80 |
| Storage Humidity Range | RH20~95%(non-condensing) |
| IP Code | - |
|---|---|
| Operating Voltage Range | Voltage fluctuation: Within ±10% of rated voltage Continuous operation: At or below rated voltage |
| Protection Method | Impedance Protection |
| Noise characteristics | Measured at 1.5 m from equipment surface (centerline of air inlet) |
| Airflow–Static Pressure Characteristics | Double Chamber Method (AMCA210) |
| Dielectric Strength | AC1500V for 1 minute or AC1800V for 1 second |
| Insulation Resistance | 100 MΩ or more when 500 V DC is applied between the windings and the frame under normal ambient conditions. |
| Lead Wire Specifications | UL AVLV2 AWG22(100Vclass:black 200class:white or gray) |
| Grounding Specifications | |
|---|---|
Refer to page 17 for details. |
|
Option1
| Product Name | Finger Guard |
|---|---|
| Model | IG-080 |
 |
|
