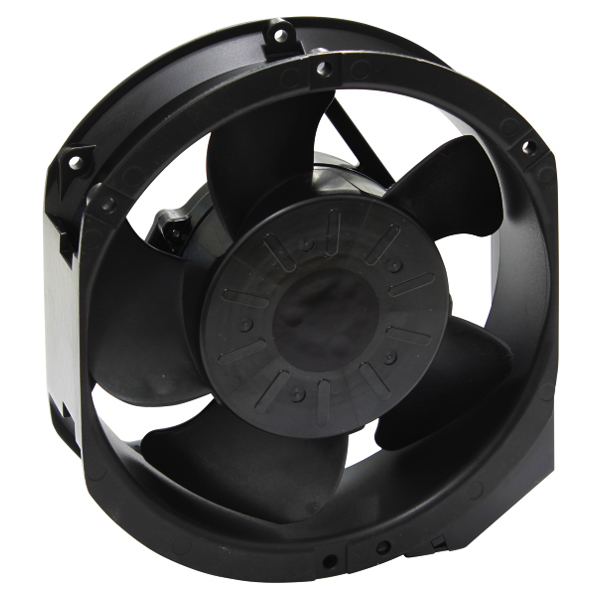

P17E22H-TP-GTEW
The product photo shows a representative model. Specifications and appearance may vary.
Model:P17E22H-TP-GTEW
Series:P17E10H-TP-GTEW
Catalog PDF
Standards
| Classification | Axial Fan |
|---|---|
| Environmental Measures | Dustproof / Waterproof Type |
| Dimensions | φ172x152x48 |
| Frame Size | φ172x152 |
| Frame Thickness | 48 |
| Phase | Single-Phase |
| Power Supply | AC |
| Rated Voltage [V] | 220 |
| Frequency [Hz] | 50/60 |
| Input power [W] | 22/26 |
|---|---|
| Current [A] | -/- |
| Rotation speed [min-1] | 2900/3400 |
| Maximum Airflow [ｍ3/min] | 5.3/6.3 |
| Maximum Airflow [CFM] | 187.2/222.5 |
| Maximum Static Pressure [Pa] | 152.5/190.9 |
| Maximum Static Pressure [inH2O] | 0.61/0.76 |
| Noise [dB(A)] | 53/58 |
| Mass [kg] | 1.05 |
| Service Life | - |
|---|
| Sensor | |
|---|---|
Fan sensorsetting not available. |
|
Safety Standards
| [UL] | [CE] | [c-ULus] | [TUV] | [PSE] |
|---|---|---|---|---|
| - | - | - | - | - |
Specifications
| Motor Type | capacitor-run motor |
|---|---|
| Material (Blade) | Resin |
| Material (Frame / Case) | Aluminum Die-Cast |
| Material (Base [for Non-Frame Models]) | - |
| Insulation Class | Class E 120℃ |
| Bearing | Ball Bearing |
| Operating Temperature Range | -10~+60 |
| Operating Humidity Range | RH35~95%(non-condensing) |
| Storage Temperature Range | -25~+70 |
| Storage Humidity Range | RH20~85%(non-condensing) |
| IP Code | IP55 compliant |
|---|---|
| Operating Voltage Range | Voltage fluctuation: Within ±10% of rated voltage Continuous operation: At or below rated voltage |
| Protection Method | Thermal Protection |
| Noise characteristics | Measured at 1.5 m from equipment surface (centerline of air inlet) |
| Airflow–Static Pressure Characteristics | Double Chamber Method (AMCA210) |
| Dielectric Strength | AC1500V for 1 minute or AC1800V for 1 second |
| Insulation Resistance | 100 MΩ or more when 500 V DC is applied between the windings and the frame under normal ambient conditions. |
| Lead Wire Specifications | UL AVLV2 AWG22 blue/black |
| Grounding Specifications | |
|---|---|
Refer to page 105 for details. |
|
| Capacitor | |
|---|---|
Built-in |
|
■ Features
Dust and Water Resistant Structure, Ideal for Upward Discharge Installation (IP55)
Option1
| Product Name | Finger Guard |
|---|---|
| Model | IG-150 |
 |
|
