DP04001012-3450-121

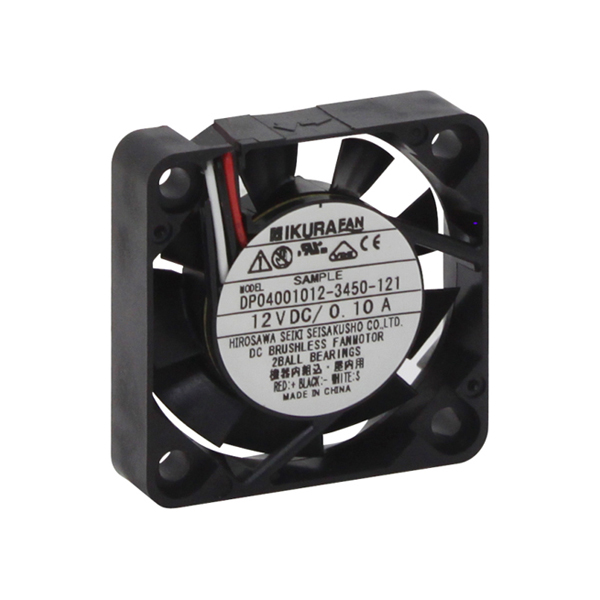

The product photo shows a representative model. Specifications and appearance may vary.
Model:DP04001012-3450-121
Series:DP040010
Catalog PDF
Standards
| Classification | Axial Fan |
|---|---|
| Environmental Measures | Standard Type |
| Dimensions | □40x10 |
| Frame Size | □40 |
| Frame Thickness | 10 |
| Phase | - |
| Power Supply | DC |
| Rated Voltage [V] | 12 |
| Frequency [Hz] | - |
| Input power [W] | - |
|---|---|
| Current [A] | 0.073 |
| Rotation speed [min-1] | 6500 |
| Maximum Airflow [ｍ3/min] | 0.17 |
| Maximum Airflow [CFM] | 6.01 |
| Maximum Static Pressure [Pa] | 46 |
| Maximum Static Pressure [inH2O] | 0.18 |
| Noise [dB(A)] | 29 |
| Mass [kg] | 0.015 |
| Service Life | 60,000h at25℃ |
|---|
| Sensor | |
|---|---|
plus sensor |
|
Safety Standards
| [UL] | [CE] | [c-ULus] | [TUV] | [PSE] |
|---|---|---|---|---|
| - | ◯ | ◯ | - | - |
Specifications
| Motor Type | DC fan |
|---|---|
| Material (Blade) | Resin |
| Material (Frame / Case) | Resin |
| Material (Base [for Non-Frame Models]) | - |
| Insulation Class | Class A 105℃(UL),Class E 120℃ |
| Bearing | Ball Bearing |
| Operating Temperature Range | -10~+70 |
| Operating Humidity Range | RH35~85%(non-condensing) |
| Storage Temperature Range | -40~+70 |
| Storage Humidity Range | RH20~85%(non-condensing) |
| IP Code | - |
|---|---|
| Operating Voltage Range | 10.2-13.8 |
| Protection Method | Protection: Auto-reset overcurrent protection, reverse polarity protection circuit built-in Features: Overcurrent cutoff with automatic recovery and reverse polarity protection |
| Noise characteristics | Measured at 1.0 m from equipment surface (centerline of air inlet) |
| Airflow–Static Pressure Characteristics | Double Chamber Method (AMCA210) |
| Dielectric Strength | AC700V for 1 second (Leakage current ? 0.5 mA, room temperature and humidity, 50Hz) |
| Insulation Resistance | 10 MΩ or more when 500 V DC is applied between the windings and the frame under normal ambient conditions. |
| Lead Wire Specifications | UL AVLV2 AWG26 +red,-black,Alarm white |
※ Sensor Codes
L: Lock Detection Sensor (Normally Closed)
P: Rotation Pulse Output Sensor
If the sensor output is not used, please leave it unconnected (free).
※ Note on Current Values
The current value shown on the product label represents the maximum value.
Please note that the values listed in this catalog represent typical (median) values.
Option1
| Product Name | Finger Guard |
|---|---|
| Model | IG-040 |
 |
|
