6207G1-TP

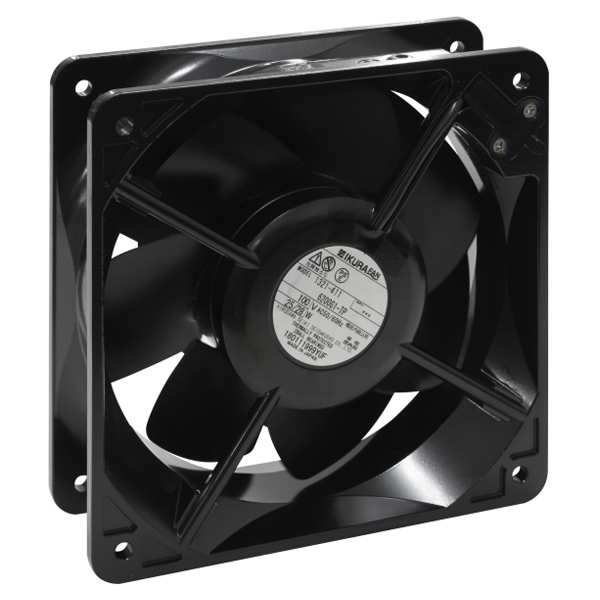

The product photo shows a representative model. Specifications and appearance may vary.
Model:6207G1-TP
Series:6207G-TP
Catalog PDF
Standards
| Classification | Axial Fan |
|---|---|
| Environmental Measures | Heat-Resistant Type |
| Dimensions | □160x55 |
| Frame Size | □160 |
| Frame Thickness | 55 |
| Phase | Single-Phase |
| Power Supply | AC |
| Rated Voltage [V] | 100 |
| Frequency [Hz] | 50/60 |
| Input power [W] | 18/20 |
|---|---|
| Current [A] | 0.2/0.2 |
| Rotation speed [min-1] | 2900/3400 |
| Maximum Airflow [ｍ3/min] | 5.2/6.2 |
| Maximum Airflow [CFM] | 183.7/219 |
| Maximum Static Pressure [Pa] | 169.8/153.8 |
| Maximum Static Pressure [inH2O] | 0.67/0.61 |
| Noise [dB(A)] | 56/61 |
| Mass [kg] | 1.35 |
| Service Life | - |
|---|
| Sensor | |
|---|---|
Please refer to the fan sensor documentation. |
|
Safety Standards
| [UL] | [CE] | [c-ULus] | [TUV] | [PSE] |
|---|---|---|---|---|
| - | - | - | - | - |
Specifications
| Motor Type | capacitor-run motor *Capacitor included |
|---|---|
| Material (Blade) | Metal |
| Material (Frame / Case) | Aluminum Die-Cast |
| Material (Base [for Non-Frame Models]) | - |
| Insulation Class | Class B 130℃ |
| Bearing | Ball Bearing |
| Operating Temperature Range | -10~+100 -25~+70℃(Capacitor) |
| Operating Humidity Range | RH35~85%(non-condensing) |
| Storage Temperature Range | -30~+100 |
| Storage Humidity Range | RH20~85%(non-condensing) |
| IP Code | - |
|---|---|
| Operating Voltage Range | Voltage fluctuation: Within ±10% of rated voltage Continuous operation: At or below rated voltage |
| Protection Method | Thermal Protection (145℃) |
| Noise characteristics | Measured at 1.5 m from equipment surface (centerline of air inlet) |
| Airflow–Static Pressure Characteristics | Double Chamber Method (AMCA210) |
| Dielectric Strength | AC1500V for 1 minute or AC1800V for 1 second |
| Insulation Resistance | 100 MΩ or more when 500 V DC is applied between the windings and the frame under normal ambient conditions. |
| Lead Wire Specifications | 0.5sq blue/black/white or gray |
| Grounding Specifications | |
|---|---|
100V: No tapping provided. 200V: Tapping provided with screws. |
|
| Capacitor | |
|---|---|
3/250 |
|
■ Features
Heat resistance up to 100℃, expected lifespan of 10,000 hours, compatible with detachable sensor
Option1
| Product Name | Finger Guard |
|---|---|
| Model | IG-160 |
 |
|
