250P24-TP

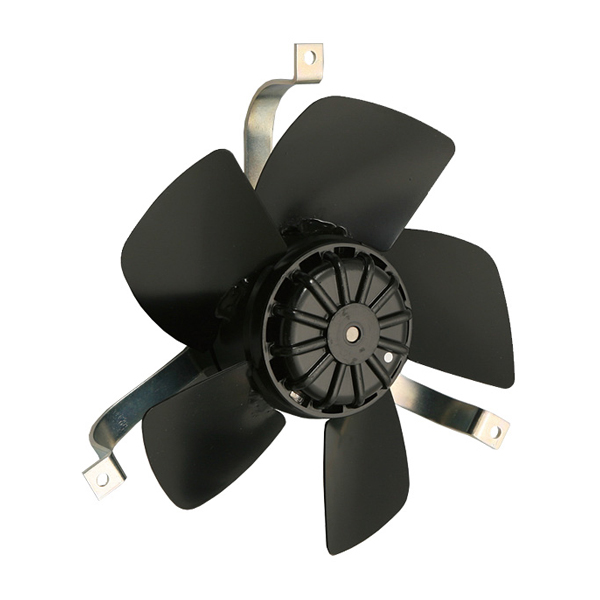

The product photo shows a representative model. Specifications and appearance may vary.
Model:250P24-TP
Series:250P04-TP
Catalog PDF
Standards
| Classification | Axial Fan (Frame-less) |
|---|---|
| Environmental Measures | Standard Type |
| Dimensions | φ250 |
| Frame Size | φ250 |
| Frame Thickness | - |
| Phase | Single-Phase |
| Power Supply | AC |
| Rated Voltage [V] | 120 |
| Frequency [Hz] | 50/60 |
| Input power [W] | 60/55 |
|---|---|
| Current [A] | -/- |
| Rotation speed [min-1] | 1450/1700 |
| Maximum Airflow [ｍ3/min] | 11.6/13.7 |
| Maximum Airflow [CFM] | 409.6/483.8 |
| Maximum Static Pressure [Pa] | 117.2/98 |
| Maximum Static Pressure [inH2O] | 0.46/0.39 |
| Noise [dB(A)] | 50/53 |
| Mass [kg] | 2.6 |
| Service Life | - |
|---|
| Sensor | |
|---|---|
Please refer to the fan sensor documentation. |
|
Safety Standards
| [UL] | [CE] | [c-ULus] | [TUV] | [PSE] |
|---|---|---|---|---|
| - | - | - | - | - |
Specifications
| Motor Type | Single-Phase Shaded Pole Induction Motor (4P) |
|---|---|
| Material (Blade) | Metal |
| Material (Frame / Case) | Aluminum Die-Cast |
| Material (Base [for Non-Frame Models]) | Plated Steel Sheet |
| Insulation Class | Class E 120℃ |
| Bearing | Ball Bearing |
| Operating Temperature Range | -10~+60 |
| Operating Humidity Range | RH35~85%(non-condensing) |
| Storage Temperature Range | -30~+80 |
| Storage Humidity Range | RH20~85%(non-condensing) |
| IP Code | - |
|---|---|
| Operating Voltage Range | Voltage fluctuation: Within ±10% of rated voltage Continuous operation: At or below rated voltage |
| Protection Method | Thermal Protection (135℃) |
| Noise characteristics | Measured at 1.5 m from equipment surface (centerline of air inlet) |
| Airflow–Static Pressure Characteristics | Double Chamber Method (AMCA210) |
| Dielectric Strength | AC1500V for 1 minute or AC1800V for 1 second |
| Insulation Resistance | 100 MΩ or more when 500 V DC is applied between the windings and the frame under normal ambient conditions. |
| Lead Wire Specifications | 30/0.18(0.75sq) black |
| Grounding Specifications | |
|---|---|
Grounding terminal with earth screw provided only on 200V class models. |
|
● Reversed Airflow Type (H Type)
Model Example: 250P04H-2TP
Models with reversed airflow include an “H” in the model number. For details, please contact us.
※ Please ensure this product is used in a structure where it cannot be touched by the human body.
Option1
| Product Name | Finger Guard |
|---|---|
| Model | A-250 |
 |
|
