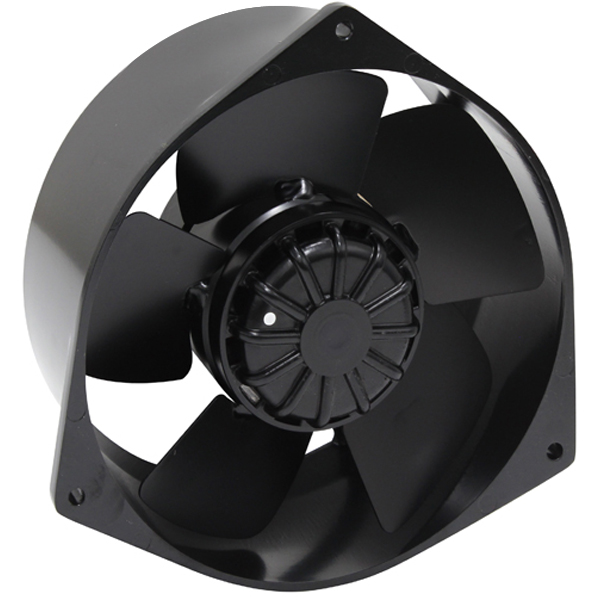

The product photo shows a representative model. Specifications and appearance may vary.
Model:200-59-5-3TP
Series:200-59-5-3TP
Catalog PDF
Standards
| Classification | Axial Fan |
|---|---|
| Environmental Measures | Standard Type |
| Dimensions | φ200x83 |
| Frame Size | φ200 |
| Frame Thickness | 83 |
| Phase | Three-Phase |
| Power Supply | AC |
| Rated Voltage [V] | 200 |
| Frequency [Hz] | 50/60 |
| Input power [W] | 38/47 |
|---|---|
| Current [A] | -/- |
| Rotation speed [min-1] | 2900/3400 |
| Maximum Airflow [ｍ3/min] | 11.2/13.4 |
| Maximum Airflow [CFM] | 395.5/473.2 |
| Maximum Static Pressure [Pa] | 245.9/302.8 |
| Maximum Static Pressure [inH2O] | 0.98/1.21 |
| Noise [dB(A)] | 60/65 |
| Mass [kg] | 2.9 |
| Service Life | - |
|---|
| Sensor | |
|---|---|
Please refer to the fan sensor documentation. |
|
Safety Standards
| [UL] | [CE] | [c-ULus] | [TUV] | [PSE] |
|---|---|---|---|---|
| - | - | - | - | - |
Specifications
| Motor Type | Three-phase induction motor(2P) |
|---|---|
| Material (Blade) | Metal |
| Material (Frame / Case) | Aluminum Die-Cast |
| Material (Base [for Non-Frame Models]) | - |
| Insulation Class | Class E 120℃ |
| Bearing | Ball Bearing |
| Operating Temperature Range | -10~+70 |
| Operating Humidity Range | RH35~85%(non-condensing) |
| Storage Temperature Range | -30~+80 |
| Storage Humidity Range | RH20~85%(non-condensing) |
| IP Code | - |
|---|---|
| Operating Voltage Range | Voltage fluctuation: Within ±10% of rated voltage Continuous operation: At or below rated voltage |
| Protection Method | Thermal Protection (135℃) |
| Noise characteristics | Measured at 1.5 m from equipment surface (centerline of air inlet) |
| Airflow–Static Pressure Characteristics | Double Chamber Method (AMCA210) |
| Dielectric Strength | AC1500V for 1 minute or AC1800V for 1 second |
| Insulation Resistance | 100 MΩ or more when 500 V DC is applied between the windings and the frame under normal ambient conditions. |
| Lead Wire Specifications | 30/0.18(0.75sq)red/black/white or gray |
| Grounding Specifications | |
|---|---|
All models: Grounding terminal processed and earth screw installed.Refer to page 17 for details. |
|
● Reversed Airflow Type (H Type)
Model Example: 200-59H5-3TP
Models with reversed airflow include an “H” in the model number. For details, please contact us.
