18FK-TP
The product photo shows a representative model. Specifications and appearance may vary.
Model:18FK-TP
Series:18F0-TP
Catalog PDF
Standards
| Classification | Axial Fan |
|---|---|
| Environmental Measures | Standard Type |
| Dimensions | □180x65 |
| Frame Size | □180 |
| Frame Thickness | 65 |
| Phase | Single-Phase |
| Power Supply | AC |
| Rated Voltage [V] | 230 |
| Frequency [Hz] | 50/60 |
| Input power [W] | 40/50 |
|---|---|
| Current [A] | 0.16/0.18 |
| Rotation speed [min-1] | 2750/3100 |
| Maximum Airflow [ｍ3/min] | 8.6/10 |
| Maximum Airflow [CFM] | 303.7/353.1 |
| Maximum Static Pressure [Pa] | 177/167 |
| Maximum Static Pressure [inH2O] | 0.7/0.66 |
| Noise [dB(A)] | 63/67 |
| Mass [kg] | 1.8 |
| Service Life | - |
|---|
| Sensor | |
|---|---|
Please refer to the fan sensor documentation. |
|
Safety Standards
| [UL] | [CE] | [c-ULus] | [TUV] | [PSE] |
|---|---|---|---|---|
| - | - | - | - | - |
Specifications
| Motor Type | capacitor-run motor |
|---|---|
| Material (Blade) | Metal |
| Material (Frame / Case) | Aluminum Die-Cast |
| Material (Base [for Non-Frame Models]) | - |
| Insulation Class | Class E 120℃ |
| Bearing | Ball Bearing |
| Operating Temperature Range | -20~+60 |
| Operating Humidity Range | RH35~85%(non-condensing) |
| Storage Temperature Range | -20~+60 |
| Storage Humidity Range | RH20~85%(non-condensing) |
| IP Code | - |
|---|---|
| Operating Voltage Range | Voltage fluctuation: Within ±10% of rated voltage Continuous operation: At or below rated voltage |
| Protection Method | Thermal Protection (120℃) |
| Noise characteristics | Measured at 1.5 m from equipment surface (centerline of air inlet) |
| Airflow–Static Pressure Characteristics | Double Chamber Method (AMCA210) |
| Dielectric Strength | AC1500V for 1 minute or AC1800V for 1 second |
| Insulation Resistance | 100 MΩ or more when 500 V DC is applied between the windings and the frame under normal ambient conditions. |
| Lead Wire Specifications | SVT AWG18x3(brown/blue/Green/Yellow spiral) |
| Grounding Specifications | |
|---|---|
A yellow/green grounding wire is included in the lead wires. If additional grounding connection processing is required, please specify when ordering. |
|
| Capacitor | |
|---|---|
Built-in |
|
Option1

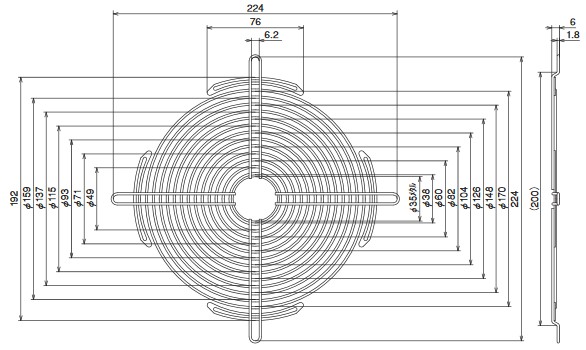

| Product Name | Finger Guard |
|---|---|
| Model | IG-180 |
 |
|
